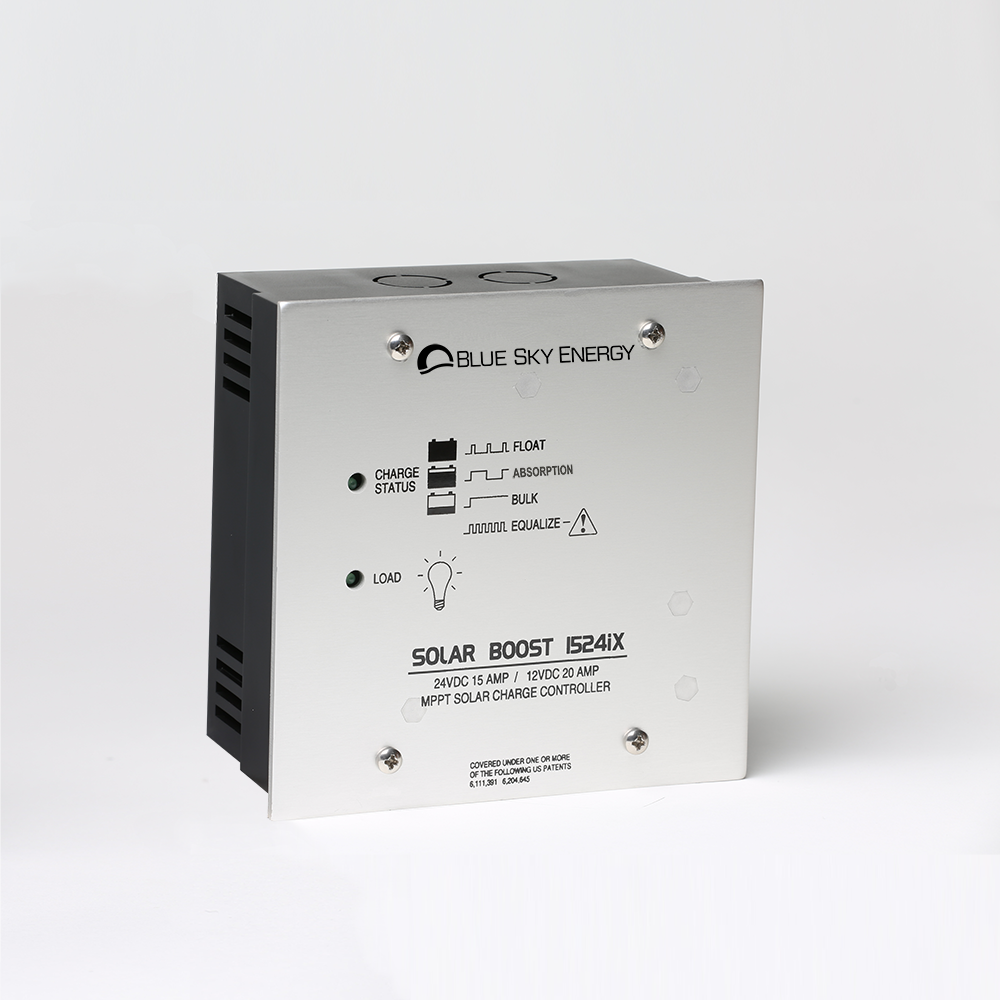

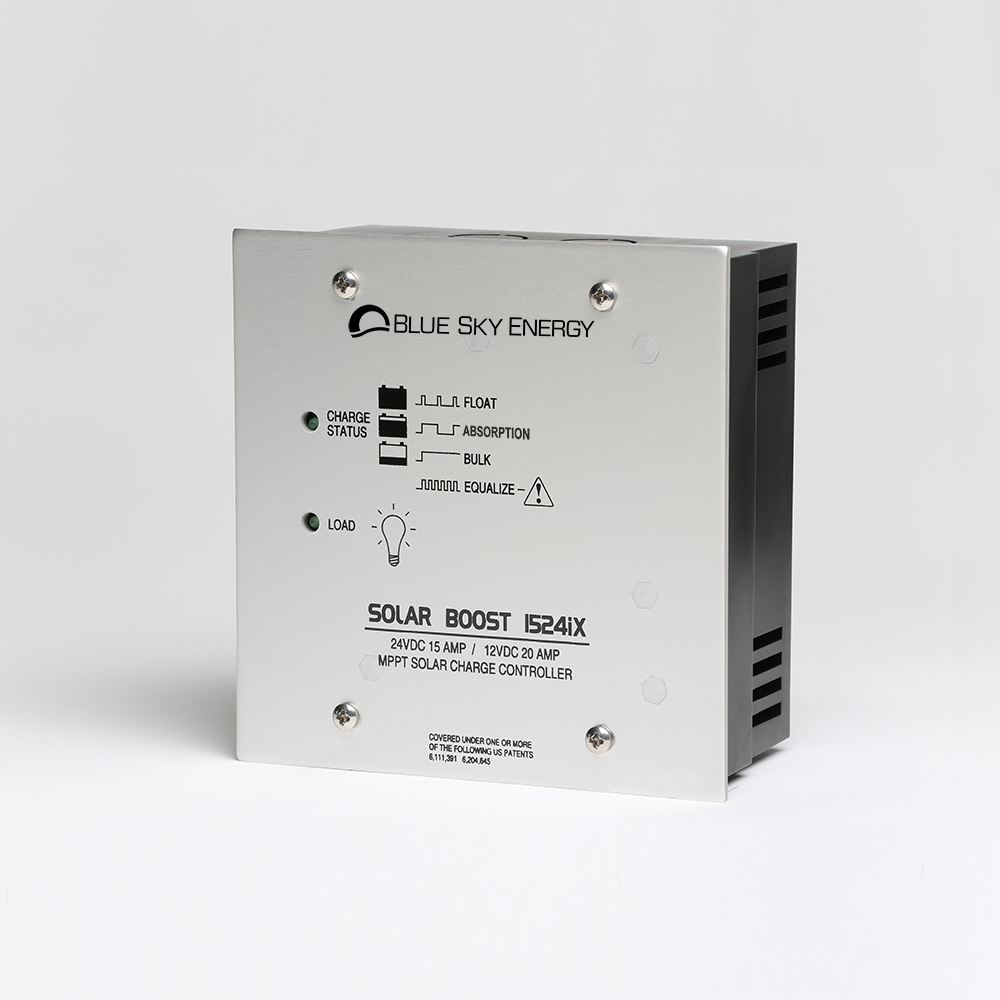

SB1524iX-Li
20A/15A charge current, 4S/8S LiFePO4 batteries, Surface or Flush Wall Mounting, Aux. Output, IPN Network capability
The SB1524iX(-Li) features our patented MPPT technology, a second auxiliary battery output, and an IPN connector for remote display or Bluetooth adapter is ideal for RVs and Marine applications. The SB1524 can manage a 20A @12V (or 15A @24V) DC Load Output for small off-grid electrification applications and with an IPN ProRemote, BT Connect, or UCM, the DC Load Output can be programmed with its dusk-to-dawn load control for PV street lighting. The SB1524iX is programmed for Lead Acid batteries and the SB1524iX-Li is programmed for charging LiFePO4 batteries. Both versions can be programmed with a remote display, UCM, or BT Connect for a custom charge profile for any type of battery.
- SB1524iX Lithium MPPT datasheet
- SB1524iX Lithium MPPT manual
