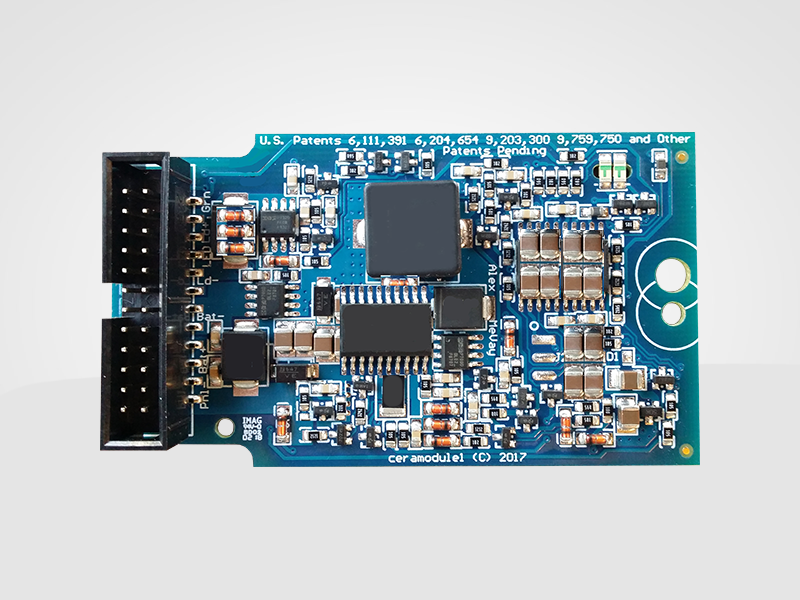

Genasun GV-5-MOD Lithium CV MPPT

GV-5-MOD-CV

The most advanced solar charge controller on the market for OEM/Embedded applications with plug&play pin-header connector.

GV-5 module for 12V Lithium or Lead-Acid Configurations. Indicate charge profile in notes at checkout. Max PV Voc@STC: 22V, Absolute Maximum Input: 27V, Battery Nominal Voltage: 12V Multi-Stage Custom Voltage, Max Panel Power (36-cell module): 65W"

• GV-5-MOD specifications
• GV-5-MOD datasheet
• GV-5-MOD drawing

Please check out our Product Selection Guide below when you are not sure which mppt is the right version for your project.

• Product Selection Guide

Delivery time approximately 10 to 14 business days
