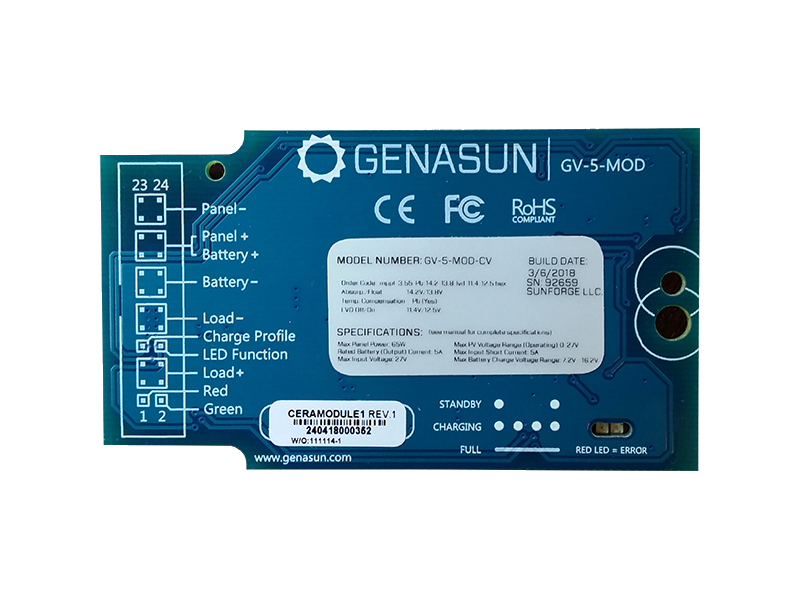

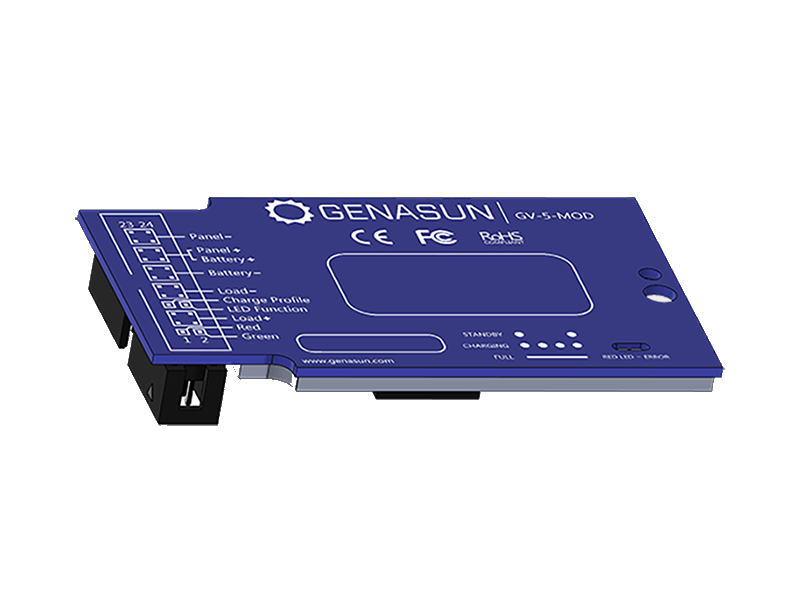

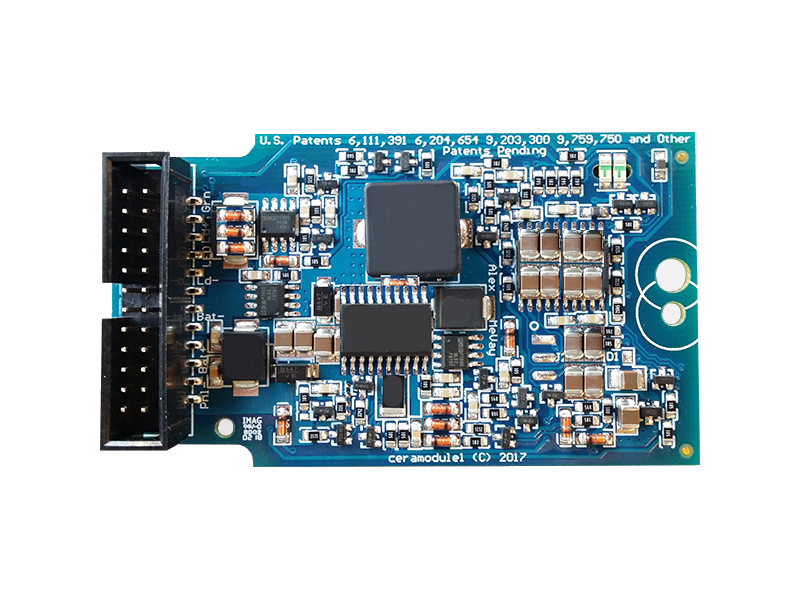

Genasun GV-5-MOD LFP Lithium MPPT

GV-5-MOD-LFP

The most advanced solar charge controller on the market for OEM/Embedded applications with plug&play pin-header connector.

5A, MPPT PCB board, Pin-Header connector, 65W max, Load Output (LVD), dual-firmware 12V nominal for 3S LiFePO4 (10.7V) / 4S LiFePO4 (14.2V).
Max PV Voc@STC: 22V, Absolute Maximum Input: 27V, Battery Nominal Voltage: 12V LiFePO4, Battery Type: Lithium, Max Panel Power (36-cell module): 65W

• GV-5-MOD specifications
• GV-5-MOD datasheet
• GV-5-MOD drawing

Please check out our Product Selection Guide below when you are not sure which mppt is the right version for your project.

• Product Selection Guide
